Base Mounted Liquid Ring Vacuum Pumps

Photo Gallery

Below is just a sampling of the various systems we offer on our Base Mounted Liquid Ring Vacuum Pumps.

Click on the individual photos for a detailed description of the units.


BOLT-IN replacments
for Tuthill/KINNEY®
KLRC® vacuum pumps

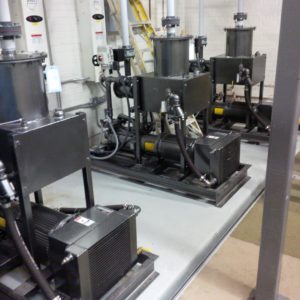

3x 140 cfm Air Cooled-Oil Sealed Liquid Ring.


700 cfm Booster/Air Ejector/Liquid Ring
Vacuum to 0.5 Torr


1650cfm  VFD controlled Booster  system. 1 of 7 systems custom made for Defense contractor


300 cfm Liquid ring pump
& 700 cfm Booster
CL1 Grp C&D motors

100cfm Full recovery
Water Sealed system

Standard Pump Set

200cfm Full Recovery Water Sealed pump W/ Air ejector- 5 Torr Vacuum

100 cfm Once-thru
Water Sealed system

35cfm Full Recovery
Water Sealed system

75cfm Full Recovery Water Sealed
vacuum pump w/ Air Ejector – 5 Torr
