US VACUUM™ LRV / NC SERIES

Liquid Ring Vacuum Pumps

Single Stage: 18-342 cfm – Vacuum to: 29″ Hg

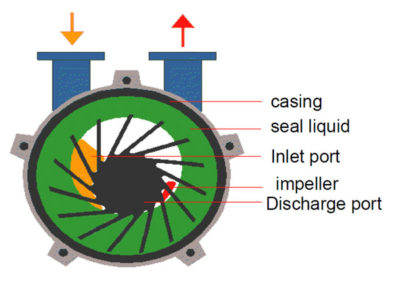

U.S. VACUUM LRV/NC pumps are single stage close-coupled liquid ring vacuum pumps capable of producing a vacuum to 28.3″ Hg.

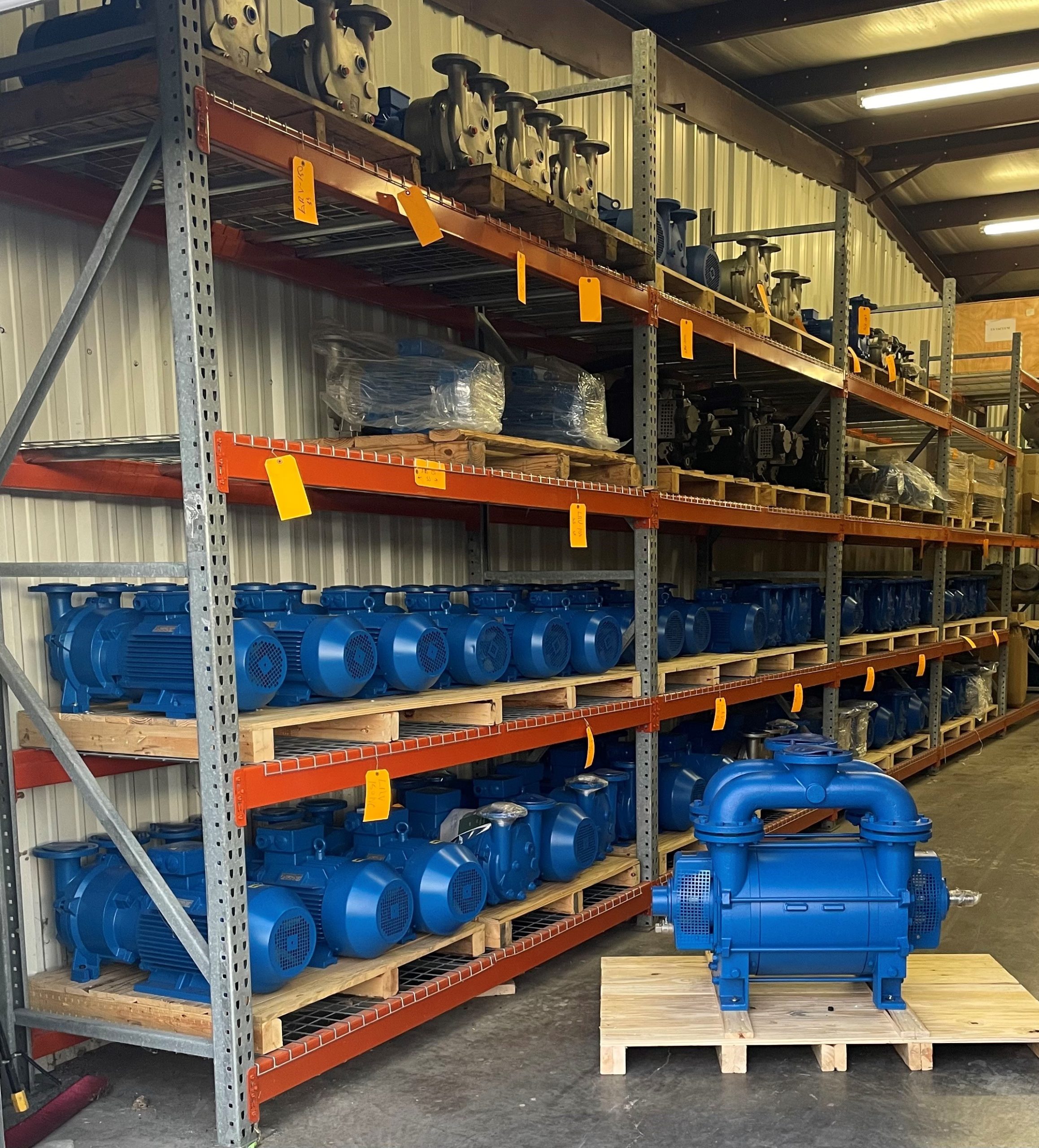

RELIABLE — AFFORDABLE — IN STOCK

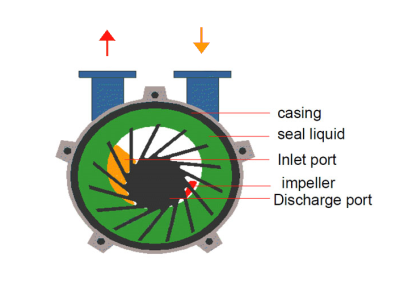

U.S. VACUUM LRV/NC pumps are single stage close-coupled liquid ring vacuum pumps capable of producing a vacuum to 28.3″ Hg. The pumps are available in various materials of construction ( FS = Iron/Stainless steel, SS = All stainless steel). These are the preferred type of vacuum pump used in process applications where heavy flows of condensable vapors (water, steam, alcohols, solvents, etc) are present. Isothermic  compression combined with self flushing capabilities allow these pumps to handle the most contaminating type of process gas streams.

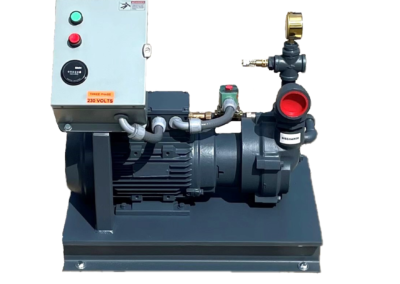

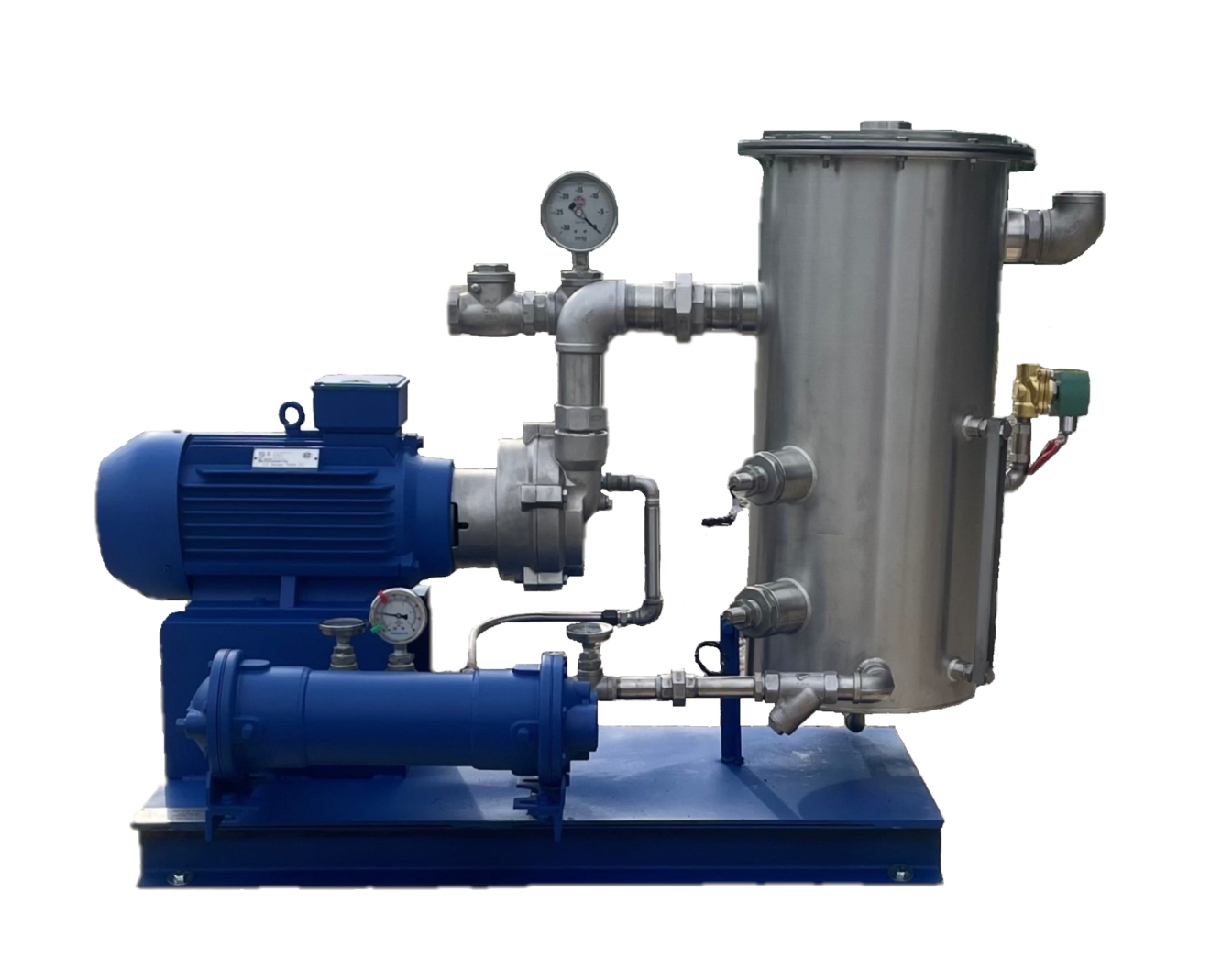

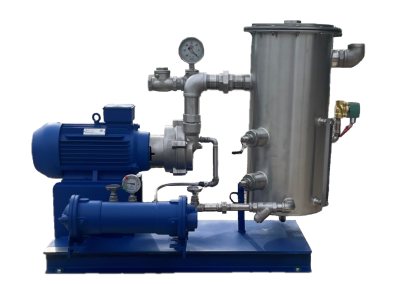

Pumps are provided with threaded connections for service liquid, pump draining and vacuum relief valve. Optional items include inlet check valve, vacuum relief valve, flow control, solenoid valve, vacuum and temperature gauges. Pumps can also come as completely packaged units using water or water as a seal fluid.

Flows from 15-2000cfm, Single and dual stage designs, vacuum capability to 29″Hg. Deeper vacuum obtainable (5 torr) with the use of air ejector or rotary vacuum boosters. Motors are 3-phase 60Hz, 230-460v

Features:  Oil free discharge – Only one moving part – Very low maintenance – Capable of handling wet gases

Technical Data

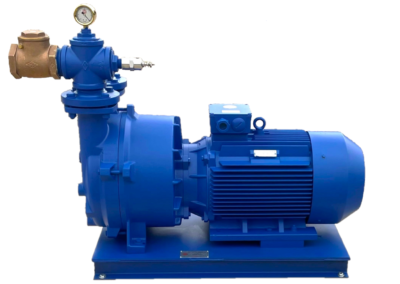

Technical DataSpecLRV 20NCLRV 35NCLRV 55NCLRV 100NCLRV 150NCLRV 200NCLRV 350NC
Nominal CapacityCFM183456113157192342
Pump SpeedRPM3500350035001750175017501150
MotorHp2.23.65.48.411.516.626
Noise Level at 60 Torrdb(A)69697374747778
Average service liquid flowGPM1.01.01.544511
In/Out, Thread Typein1"1"1.5"2"2"2.5"3"
Ultimate VacuumTorr41 Torr (28.3" Hg)
Weightlbs7579150231269342721
Price w/ motorCarbon Steel$2,715$2,945$3,735$5,155$5,995$6,825$11,950
Price w/ motorStainless Steel$5,450$6,550$10,850$11,545$13,500

Carbon Steel: Cast iron casing, 304SST impeller, Viton Mechanical seal

Stainless Steel: 316 Casing, Port plate & Impeller; 304 Shaft, Viton mechanical seal
