Liquid Separator

Liquid Trap / Filter Combination Unit

U.S. Vacuum LIQUID SEPARATORS are excellent choices for applications where large slugs of liquids need to be prevented from entering the vacuum pump.

U.S. Vacuum LIQUID SEPARATORS are excellent choices for applications where large slugs of liquids need to be prevented from entering the vacuum pump. Capturing these liquids before they can enter the vacuum pump will reduce pump failure, oil degradation, and production downtime. These separators can be used on all types of vacuum pumps including Liquid Ring, Piston, Vane, Screw and Side channel blowers.



Features

  • Prevents Liquid slugs from entering vacuum pump
  • Acts as Both Liquid Knock-out pot & Particulate filter
  • Available in Cs, SST Epoxy & SST construction
  • Particle filtration to 5 micron
  • 99% Liquid removal efficiency
  • Level switch, sight glass, drain ports
  • Multi-stage liquid separation
  • Gauge ports

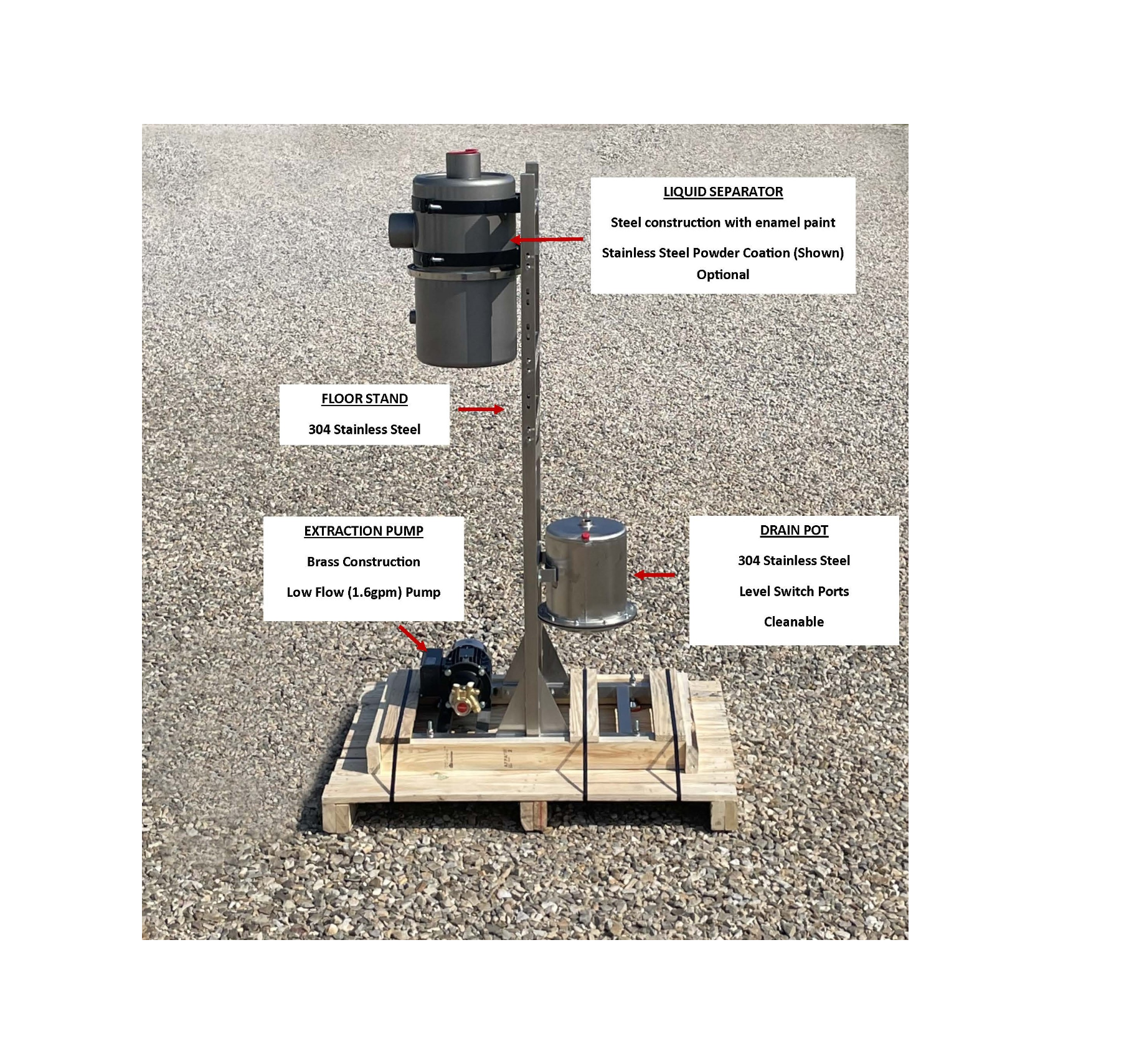

OPTIONAL PUMP, STAND AND ELECTRICAL PANEL

Model "LS"FlowInlet/OutletPriceApprox. holding
CFMInchesUSDCapacity, GAL
3520-LS13253/4"$1,0951.5
3520-LS08401"$1,0951.5
3520-LS09601.25"$1,0951.5
3520-LS10801.5"$1,0951.5
3520-LS111802"$1,9902.5
3520-LS122202.5"$1,9902.5
3520-LS073003"$1,9902.5
3520-LS174004"$2,4804.5
3520-LS158006"$3,6204.5

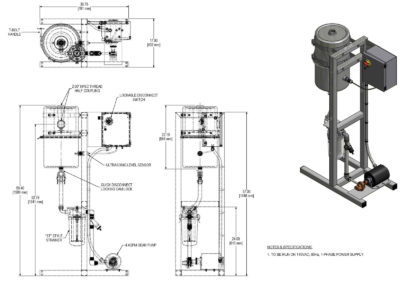

Drawings
3/4" (3520-LS13)
1" (3520-LS08)
1.25" (3520-LS09)
1.5" (3520-LS10)
2" (3520-LS11)
2.5" (3520-LS12)
3" (3520-LS07)
4" (3520-LS17)
6" (3520-LS15)
ModelFPTDimensions
Inlet/OutletABCDE
3520-LS133/4"173/47-11/1633/4
3520-LS081"173/47-11/1633/4
3520-LS091.25"183/47-11/1633/4
3520-LS101.5"183/47-11/1633/4
3520-LS112"22-1/43/5123-3/43/4
3520-LS122.5"24-3/82-7/8123-3/42-7/8
3520-LS073"25-1/82-7/8123-3/42-7/8
3520-LS174" Flg24-3/84165-3/164
3520-LS156"40-1/25164-1/44



Reference Only
