DRP™ Series Dry Piston
Vacuum Pumps

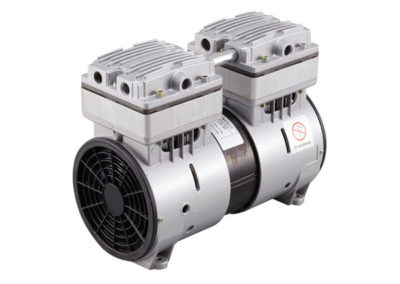

DRPC-4
DRPS13
DRPS-7 Tank Unit
The DRP series are 100% oil-less piston type vacuum pumps. They are designed to operate on a continuous basis at any point from atmospheric pressure to the pumps’ ultimate vacuum level of 27.5″Hg (DRPS) & 29.5″Hg (DRPC). They are ideal for applications where oil or water sealed pumps are objectionable.
The units are supplied with electric motor (w/ thermal protector), vacuum gauge, hose connector, exhaust silencer/muffler, support legs and a heavy duty, 6 foot long 120v (15A) power cord with N. American plug and on-off switch. Designed for pumping Air and other non-reactive, non-corrosive, non-flammable gases only.
Applications include medical, dental, biological filtration, chip mounting/holding, air sampling, vacuum packaging, material handling, environmental equipment and others.
Table
| PUMP TYPE | DRPC-4 | DRPS-7 | DRPS-13 |
|---|---|---|---|
| Nominal Capacity-CFM | 3.7 | 7 | 13 |
| Motor-Installed power (W) | 500 | 500 | 1000 |
| Noise level at 60 Torr- db(A) | 58 | 58 | 68 |
| Inlet connection (Inches) | 1/4" | 1/4" | 1/2" |
| Ultimate Max vacuum (Torr) | 29.5"Hg (10 Torr) | 27.5"Hg (60 Torr) | 27.5"Hg (60 Torr) |
| Weight (Lbs) | 20 | 20 | 48 |
| Price (Pump Only) | $1,125 (120v only) | $1,125 (120v only) | $1,895 (120v or 240v) |
| Price (Tank Systems) | $2,450 (20 gal tank) | $3,125 (30 gal tank) |
