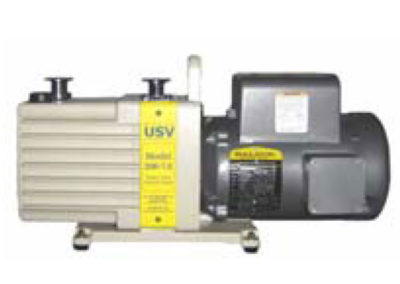

ULTRAVAC™ SERIES
Oil Lubricated, Rotary Vane Vacuum Pumps
Two Stage: 7-63 cfm – Vacuum to: .0005 mm Hg
IN STOCK
ULTRA-VAC pumps are Two-Stage Rotary Vane Air-Cooled vacuum pumps capable of producing an ultimate vacuum of .0005 mm Hg. All pumps come with an anti-suckback valve, gas ballast valve, ISO/KF connections, base & rubber feet. Single phase pumps come with 2 meter 120V power cord & on-off switch.
ULTRA-VAC pumps are ideally suited for use in applications such as Air Conditioning & refrigeration evacuation, vacuum ovens, backing turbo pumps, degassing, cylinder filling, sampling applications and others.. MANUALS: USV200_1800 USV1005_1805
Technical Data
| Technical Data | Spec | US200 | US400 | US650 | US1005 | US1805 |
|---|---|---|---|---|---|---|
| Displacement | CFM | 7 | 14 | 22 | 35 | 64 |
| Ultimate Vacuum | Torr | .0005 mm Hg | .0005 mm Hg | .0005 mm Hg | .001 mm Hg | .001 mm Hg |
| Noise Level | dba | 56 | 56 | 57 | 56 | 56 |
| Motor | Hp | .5 | 1 | 1.5 | 2 | 5 |
| Pump Speed | RPM | 1800 | 1800 | 1800 | 1800 | 1800 |
| Oil Capacity | Qt | .62 | 1.5 | 2.9 | 4.7 | 6.5 |
| Inlet, ISO-KF | mm | KF25 | KF25 | KF25 | KF40 | KF40 |
| Weight (w/ motor) | lbs | 53 | 70 | 114 | 174 | 235 |
Prices
| Model # | CFM | Price |
|---|---|---|
| US-200 | 7 | $2,595 Availability (120v-Stock; 3-phase 1 week) |
| US-400 | 14 | $3,150 (I20v-Stock; 3-phase 1 week) |
| US-650 | 22 | $3,995 (120v-Stock) |
| US-1005 | 35 | $5,950 (In Stock) |
| US-1805 | 63 | $7,850 (In Stock) |
