DS Dry Scroll Vacuum Pumps
7-10.7 CFM (
Vacuum to: 6 Microns

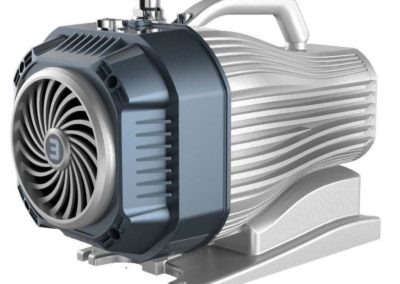

DS Series Dry Scroll Vacuum Pumps
The DS series oil free Dry Scroll vacuum pumps are air-cooled, scroll vacuum pump capable of producing pressures down to 0.008mBar (6 microns Hg). Higher flow than competitive pumps, you will achieve faster evacuation time to your target pressures to get your task job done fast and on-time. No cooling water or sealing oil is required resulting in a clean and oil-free exhaust environment. The pumps are used widely in medical equipment, electronics, vacuum drying applications, research, laboratory, degassing and leak detection.
Anodized aluminum and PTFE construction for oxidation-free operation.
The pumps come standard with 120v, 60hz power cord with N. American plug.
| PUMP TYPE | DS-7 (Discontinued) | DS-11 (Discontinued) |
|---|---|---|
| Nominal Capacity-CFM | 7 | 10.7 |
| Speed (RPM) | 1800 | 1800 |
| Motor-Installed power (Watts) | 400 | 400 |
| Noise level at 60 Torr- db(A) | 54 | 54 |
| Inlet connection (Inches) | KF25 | KF25 |
| Ultimate Max vacuum (Torr) | 6 Microns (0.006 Torr) | 45 Microns (0.045 Torr) |
| Weight (Lbs) | 62 | 64 |
