Vacuum Filters
Inlet Filters – See Thru
40-520 CFM
Standard Design
w/5u polyester element

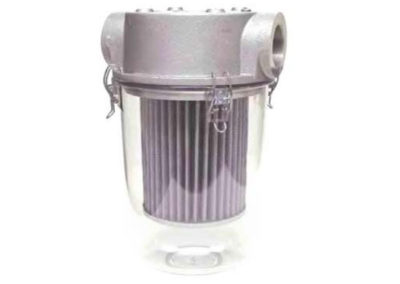

See Thru Filter
OPTIONAL: Stainless Steel ball float shut-off w/wire screen & drain
See Thru Filter Diagram
Positive O-Ring seal system
- Positive O-ring seal system
- Vacuum rating to 0.5 Torr
- Capacity rating to 520 CFM
- Comes in 1″ thru 4″ size
- Polyester or wire mesh elements available
- Drop down bucket design
U.S. Vacuum SEE-THRU VACUUM INLET FILTERS are straight thru vacuum filters made to protect vacuum pumps from damaging particulate matter. Filters utilizes a polyester or cleanable stainless steel mesh media to capture contaminates. Excellent choice for food processing, wood working and other applications where a Visible and cleanable (w/ wire mesh element) filter is required. Filters comes with vacuum gauge port on top of the assembly for installation of a vacuum gauge.
| STANDARD DESIGN | CFM | PRICE | W/ OPTIONAL BALL FLOAT & SCREEN | PRICE |
|---|---|---|---|---|
| VFIST-897100 | 40 | $585.00 | VFIST-897.100.BFT | $995.00 |
| VFIST-897125 | 60 | $585.00 | VFIST-897.125.BFT | $995.00 |
| VFIST-897150 | 80 | $585.00 | VFIST-897.150.BFT | $995.00 |
| VFIST-851200 | 175 | $685.00 | VFIST-851.200.BFT | $1,125.00 |
| VFIST-851250 | 210 | $695.00 | VFIST-851.250.BFT | $1,125.00 |
| VFIST-235300 | 300 | $1,295.00 | VFIST-235.300.BFT | $1,750.00 |
| VFIST-235400 | 520 | $1,395.00 | VFIST-235.400.BFT | $1,750.00 |
