US VACUUM™ LRH “K” SERIES
Liquid Ring Vacuum Pumps
Two Stage: 75-522 cfm – Vacuum to: 25 Torr (29″ Hg)
U.S. Vacuum LRH “K” series pumps are dual stage liquid ring vacuum pumps capable of producing a vacuum to 29” Hg.

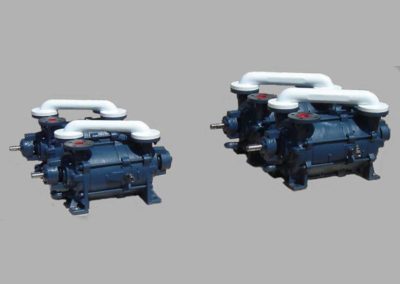

LRH 125/300K
Close Coupled Diagram
DROP-IN, BOLT-IN replacement for the Kinney® KLRC-75K, KLRC-125K, KLRC-200K, KLRC-300K and KLRC-525K.
The drop-in feature allows for easy swap-out of pumps during critical downtime situations.
U.S. Vacuum LRH “K” series pumps are dual stage liquid ring vacuum pumps capable of producing a vacuum to 29” Hg. A continuous supply of service liquid, usually water, is required by the pump to carry away the heat of compression and to maintain the liquid ring as some of the service liquid is discharged with the gas through the pump discharge port.
Pumps are provided with threaded connections for service liquid, pump draining and vacuum relief valve. Optional items include inlet check valve, vacuum relief valve, flow control, solenoid valve, vacuum and temperature gauges.
Various seal liquids may be used depending on the application. Call US Vacuum for assistance.
Features
- High vacuum capability
- Virtually vibration free
- Efficient Dual Stage Design
- High water vapor tolerance
- Very robust against vapor/debris carryover
- Fast delivery in critical downtime situations
Technical Data
| Technical Data | Spec | LRH-75K | LRH-125K | LRH-200K | LRH-300K | LRH-525K | LRH-526K | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Capacity | CFM | 75 | 140 | 186 | 295 | 522 | 406 | |||||
| Pump Speed | RPM | 1750 | 1450 | |||||||||
| Motor | Hp | 5 | 10 | 15 | 25 | 50 | 40 | |||||
| Drive | DIRECT DRIVE | BELT | ||||||||||
| Average service liquid flow | GPM | 5 | 7 | 8 | 12 | 18 | 18 | |||||
| In/Out, Thread Type | ANSI | 1.5 | 1.5 | 2 | 2 | 3 | 3 | |||||
| Ultimate Vacuum | Torr | 25 Torr (29" Hg) | ||||||||||
| Weight (Pump & Motor) | lbs | 200 | 255 | 360 | 405 | 800 | 800 | |||||
