SVP Dry Screw Vacuum Pumps (General Purpose)

12-47 CFM (20/80 M3/Hr)
Vacuum to: 0.345mmHg (Torr)

Variable Pitch Design

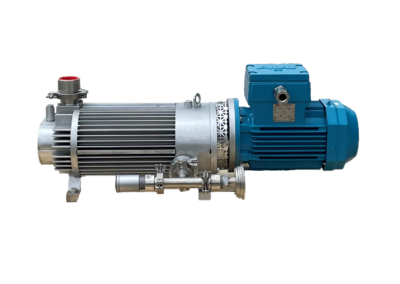

SVP Series Dry Screw Vacuum Pumps

The SVP series of pumps are DRY SCREW oil-less (pumping chamber) industrial grade vacuum pumps. They are designed to operate on a continuous basis at any point from atmospheric pressure to a vacuum level of 0.030 mm Hg (30 microns Hg). The oil-less pumps are ideal for applications where oil or water sealed pumps are objectionable. The pump comes complete with inlet and discharge check valves, 3-phase TEFC motor, KF inlet/suction connections and rubber feet . Stainless steel rotor, Aluminum body, Viton shaft seal. Pumps are AIR-COOLED

Applications include General industry, degassing, forming, dehydration, distillation, research and pilot plant environments.

Optional Accessories: Explosion-proof motors, Pre-condenser, Discharge silencer.

Nominal Capacity-CFM122747
Speed (RPM)345034503450
Motor-Installed power (HP)1.523
Noise level at 60 Torr- db(A)717273
Inlet connection (Inches)KF25KF40KF40
Ultimate Max vacuum (Torr)0.030 mmHg (Torr)0.030 mmHg (Torr)0.030 mmHg (Torr)
Weight (Lbs)93117137
Price-USD$ 9,850.00$ 12,475.00$ 16,290.00
Ordering Pt# (TEFC Motor)SVP12.M4C1SVP30.M4C1SVP50.M4C1

Standard: Pump, motor (460v, 60Hz, TEFC), coupling, suction/discharge KF fittings, Rubber feet.

Option: Inlet condenser, discharge silencer, Explosion-proof motor
