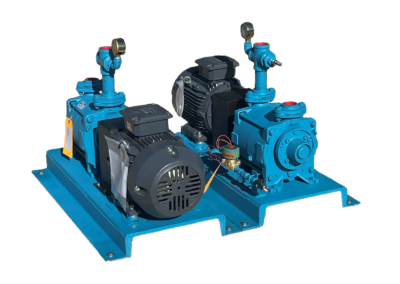

US VACUUM™ LRH & LRV SERIES
Coupled Liquid Ring Vacuum Pumps
Two Stage: 15-840 cfm / Single Stage: 32-500 cfm
Liquid Ring vacuum pumps are non-pulsating, centrifugal type pumps available in both Single-Stage and Two-Stage designs, capable of pumping wet process gases and while obtaining pressures down to 25 torr (29″Hg) using water as a seal fluid.
Vacuum to 5 torr obtainable with the addition of an atmospheric air ejector. Link

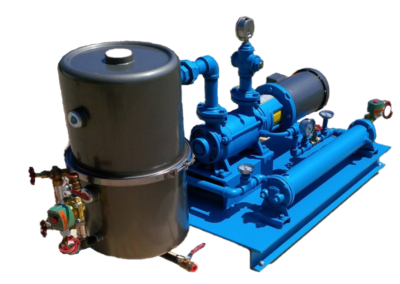

In the pump, a continuous supply of service liquid, usually water, is required by the pump to carry away the heat of compression and to maintain the liquid ring as some of the service liquid is discharged with the gas through the pump discharge port. Pumps are provided with threaded connections for service liquid, pump draining and vacuum relief valve. Once-thru and full recovery sealant system are available along with Air or Water cooling. Optional items include inlet check valve, vacuum relief valve, flow control, solenoid valve, vacuum and temperature gauges. Various seal liquids may be used depending on the application. Call US Vacuum for assistance.
DATA SHEETS LRH15/35/45 LRH75B LRH100B/140B LRH200/300 LRH400/500/600/850
Features
- High vacuum capability
- Virtually vibration free
- Efficient Dual Stage Design
- High water vapor tolerance
- Very robust against vapor/debris carryover
- Fast delivery in critical downtime situations
Technical Data (2-Stage Pumps)
| Technical Data | Spec | LRH45 | LRH75B | LRH140B | LRH200 | LRH300 | LRH500 | LRH600 | LRH850 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Capacity | CFM | 44 | 72 | 130 | 198 | 310 | 500 | 580 | 840 | |||||||
| Pump Speed | RPM | 3500 | 1750 | 1750 | 1750 | 1750 | 1750 | 1150 | 1150 | |||||||
| Motor | Hp | 5 | 7.5 | 10 | 15 | 25 | 50 | 60 | 75 | |||||||
| Noise Level at 60 Torr | db(A) | 69 | 69 | 68 | 74 | 74 | 79 | 82 | 82 | |||||||
| Average service liquid flow | GPM | 3.5 | 3.5 | 4 | 8 | 13 | 13 | 25 | 30 | |||||||
| In/Out, Thread Type | in | 1.25" | 1.25" | 1.5" | 2" | 2" | 2.5" | 4" | 4" | |||||||
| Ultimate Vacuum | Torr | 25 Torr | ||||||||||||||
| Weight | lbs | 70 | 175 | 192 | 286 | 320 | 528 | 925 | 1100 | |||||||
| Price | CALL FOR PRICING | |||||||||||||||
DATA SHEETS LRV35B-TC LVTX75/100/150 LVTX200/320 LVTX350/500/600 LVTX 1000/1200
Technical Data (Single-Stage Pumps)
| Technical Data | Spec | LRV35B-TC | LVTX75 | LVTX100 | LVTX150 | 200/320 | 350/500/600 | 700-1200 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Maximum FLow | CFM | 32 | 75 | 105 | 155 | 215/320 | 350/470/590 | 700/900/1175 | ||||||
| Pump Speed | RPM | 3500 | 1750 | 1750 | 1750 | 1750 | 1750 | 975-1180 | ||||||
| Motor | Hp | 3 | 7.5 | 7.5 | 10 | 15/20 | 30/40 | 50-100 | ||||||
| Noise Level at 60 Torr | db(A) | 69 | 68 | 69 | 72 | 79 | 80 | 82 | ||||||
| Average service liquid flow | GPM | 1.5 | 5 | 5 | 5 | 10 | 10 | 22 | ||||||
| In/Out, Thread Type | in | 1" | 1.5" | 1.5" | 1.5" | 2.5" | 4" | 6" | ||||||
| Ultimate Vacuum | Torr | 25 Torr | ||||||||||||
| Weight (Pump Only) | lbs | 48 | 136 | 152 | 172 | 250 | 335-375 | 975 | ||||||
| Price | CALL FOR PRICING | |||||||||||||
